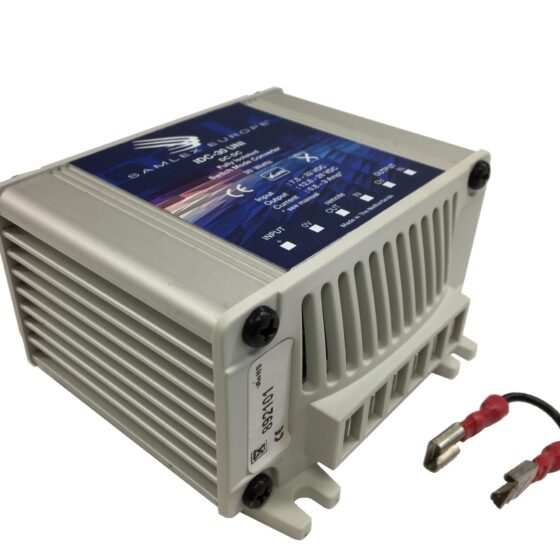

The IDC-360 series is a complete line of highly efficient 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. The IDC-360iM-series are based on the standard IDC-360 products, but are equipped with an automatic battery charging functionality. This enables the possibility to charge a battery connected to the output from another battery connected to the input. One of the benefits is that the charging voltage of the input battery does not need to be exactly the same as the charge voltage requirements of the output battery, allowing two different battery types to be connected together.s input). Features of this isolated DC-DC converter include compact housing, foldback current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connections. The unit comes with 6,3 mm push on flat blade “quick disconnect” connectors. The IDC-360A-24 isolated DC-DC converter is EMI/EMC compliant and conforms to the European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

✓ Innovative product design
✓ ISO 9001-2015 certified
✓ Strict Quality Control

Quotation Within 24 Hours


Input Voltage 9 to 18 VDC
Output Voltage 28,8-27.4 VDC
Dimensions 190,5 x 132,8 x 82 mm
Output 10 Amps
Fuse Rating n/a
Weight 1,4 Kgs
  • Completely Isolated
  • High efficiency
  • Compact and easy to install
  • Short Circuit Protected
  • Charge one battery from another
  • Motion detection so very suitable for EURO 5/6 norm
  • 2 year warranty
