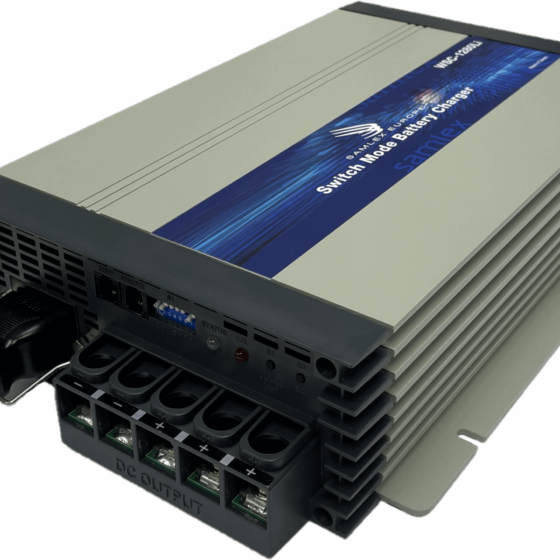

WSC-1250Li
This advanced fully automatic 4-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell), LI-Ion from a 115/230 V, 50/60 Hz AC source. A DIP switch setting can be used to convert to a two stage algorithm, in order to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short circuit protection. The unit allows charging of up to 3 separate battery banks.
✓ Innovative product design
✓ ISO 9001-2015 certified
✓ Strict Quality Control
Quotation Within 24 Hours
- Description
- Product benefits
- Documentation
Description
| Input Voltage | 100-240 VAC |
| Output Voltage | 14,8-13,5 VDC for LEAD ACID and 14.6-14.2 for LITHIUM |
| Dimensions | 292 x 220 x 75 mm |
| Output | 0-50 Amps |
| Fuse Rating | n/a |
| Weight | 2,5 Kgs |
- Wide input range 100-240Vac / 50/60Hz
- Charger/ Power supply function
- 3 different Lithium charging settings (CC/CV)
- Pre-charge for waking up the lithiuimbattery
- Adjustable charging current (50,45,40 or 30A)
- Power factor correction 0.97
- Half power mode function
- Fan speed controlled
- Slim line design
- Light Weight
- High Efficiency >90%
- 2 year warranty
| Language | File | Type |
| n.a. | WSC-1250Li | Image |
 |
WSC-1250Li_slicksheet | Specifications |
 |
Bedienungsanleitung WSC-1250_1280_12120_2425_2440_2460Li | Manual |
 |
Gebruiksaanwijzing WSC-1250_1280_12120_2425_2440_2460Li | Manual |
 |
Manual del Propietario WSC-1250_1280_12120_2425_2440_2460Li | Manual |
|
Manual WSC-1250_1280_12120_2425_2440_2460Li | Manual |
 |
Mode D’Emploi WSC-1250_1280_12120_2425_2440_2460Li | Manual |
