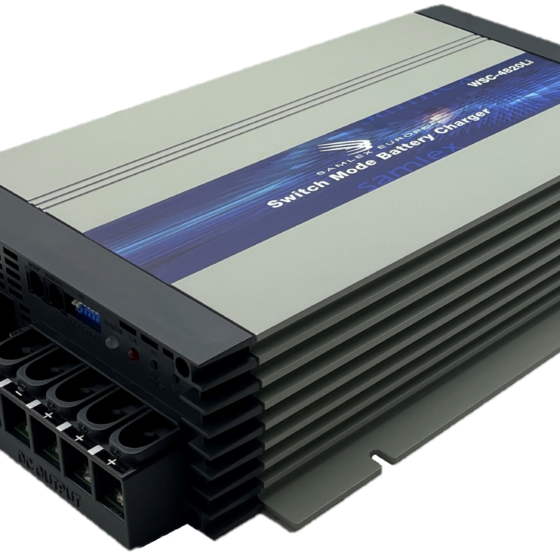

WSC-4820Li
This advanced fully automatic 4-stage 20 Amp battery charger is ideal for charging all types of 48 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell), LI-Ion from a 115/230 V, 50/60 Hz AC source. A DIP switch setting can be used to convert to a two stage algorithm, in order to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short circuit protection. The unit allows charging of up to 3 separate battery banks.
✓ Innovative product design
✓ ISO 9001-2015 certified
✓ Strict Quality Control
Quotation Within 24 Hours
- Description
- Product benefits
- Documentation
Description
| Input Voltage | 100-240 VAC |
| Output Voltage | 56V/57.6V/59.2V VDC for LEAD ACID and 56.8V/57.6V/58.4V for LITHIUM |
| Dimensions | 327 x 220 x 75 mm |
| Output | 0-20 Amps |
| Fuse Rating | n/a |
| Weight | 3 Kgs |
- Wide input range 100-240Vac / 50/60Hz
- Charger/power supply function
- 3 different lithium charge settings (CC/CV)
- Pre-charging to wake up the lithium battery
- Adjustable charging current (20, 18, 16 or 14A)
- Power factor correction 0.97
- Function for half-load operation
- Controlled fan speed
- Slim designLow weight
- High efficiency >90%
- 2 year warranty
| Language | File | Type |
| n.a. | WSC-4820Li.png | Image |
 |
Slicksheet-WSC-4820Li-1.pdf | Specifications |
 |
Bedienungsanleitung-WSC-1250_1280_2425_2440_4820Li.pdf | Manual |
 |
Gebruiksaanwijzing-WSC-1250_1280_2425_2440_4820Li.pdf | Manual |
 |
Manual-del-Propietario-WSC-1250_1280_2425_2440_4820Li.pdf | Manual |
|
Manual-WSC-1250_1280_2425_2440_4820Li.pdf | Manual |
 |
Mode-DEmploi-WSC-1250_1280_2425_2440_4820Li.pdf | Manual |
